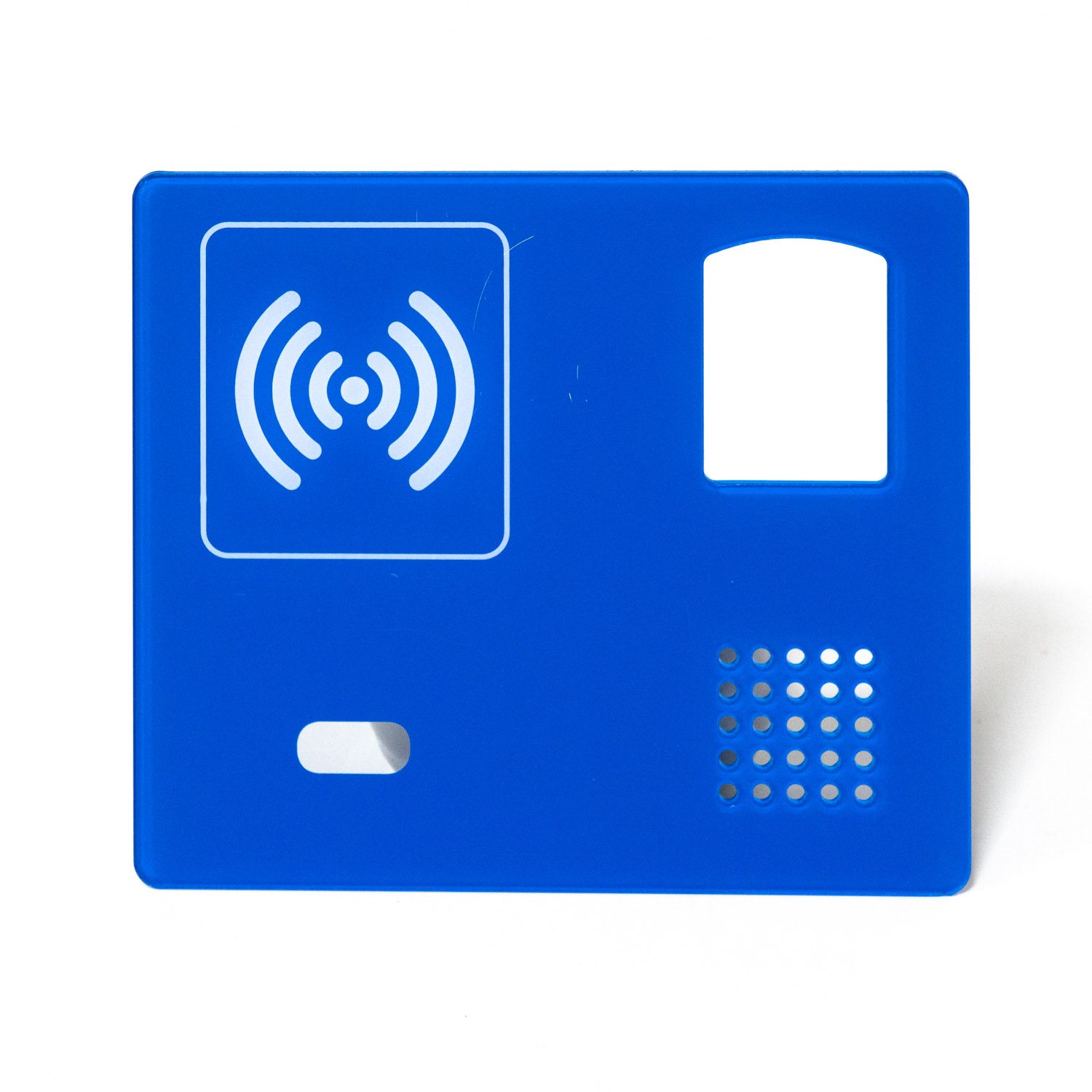

Control panel with cutouts
Blue cast acrylic · printed legend
Custom Acrylic Control & Instrument Panels
CNC-machined PMMA fascias, instrument covers and HMI windows with precise cutouts, laser-engraved legends and integral backlighting.
Reply within 12 hours · free DFM feedback
Machined acrylic control-panel bezel with display cutout
Acrylic control panels are CNC-machined PMMA fascias used as front panels, instrument covers and HMI windows on equipment. Machined from 2–12 mm cast acrylic, they combine precise cutouts for switches and displays (typically ±0.1 mm) with options metal panels can’t match: full transparency, integral backlighting, and laser-engraved legends that never wear off.
What we machine
- Front panels and fascias with switch, display and connector cutouts
- HMI and touchscreen protection windows
- Backlit panels with light-diffusing or tinted acrylic
- Laser-engraved legends, scales and warning text (paint-filled optional)
- Countersunk and threaded mounting holes, standoffs bonded on
- Smoked/tinted display windows for LED visibility with glare control
Instrument fascia
Screen-printed · fastener holes
Panels on the CNC bed
Batch machined · ±0.1 mm cutouts
Specs
| Thickness | 2–12 mm typical |
| Cutout tolerance | ±0.1 mm standard, ±0.05 mm critical |
| Min hole / slot size | Ø1 mm |
| Engraving | Laser, depth-controlled; paint fill in standard colors |
| Finishes | Gloss, frosted (one/both sides), tinted grades |
| Quantity | Prototype to high-volume production runs |
Why acrylic over metal or PC fascias
- Legibility: engraved or subsurface-printed legends can’t rub off like screen-printed metal
- Backlighting: LED edge or back lighting turns the panel itself into the indicator
- Cost at low volume: no tooling — CNC direct from CAD, so revision B costs the same as revision A
- Daily-touch durability: scratch resistance beats uncoated polycarbonate
FAQ
What tolerance can you hold on switch and display cutouts?
±0.1 mm standard, ±0.05 mm on critical dimensions with the 5-axis machining center. Specify clearance per your component datasheets; we machine to the drawing.
Can text and scales be engraved so they won't wear off?
Yes. Laser engraving cuts into the material itself; with optional paint fill the legend is permanent and high-contrast. For backlit panels we engrave from the rear face so the front stays smooth.
Do you supply panels with fasteners installed?
Yes — threaded brass inserts, bonded standoffs and countersunk holes are all done in-factory.
Can you match a tint to our display?
We stock standard grey/bronze smoked grades and source specific tints per project. Send your display model and we’ll recommend a transmission level.
What tolerance applies to switch and display openings?
Switch and display openings run to General tolerances per GB/T 1804-2000 / ISO 2768 by size span at ±0.1 mm typical, and drawing-flagged critical dimensions are confirmed at ±0.05 mm by first-article inspection.
Can you engrave and backlight acrylic fascias?
Yes: engraved labels can be back-filled, and backlight uniformity is evaluated per application against LED spacing, thickness and grade rather than guaranteed.
Which drawing formats do you accept for fascias?
Drawings accepted as STEP/DWG/DXF/PDF/sketches, and a manufacturing drawing is drafted from a sketch so switch positions are agreed before production.
What surface finish do fascia panels get?
Fascia edges are polished and the A face follows Appearance described as clear / glass-clear / optically clear, judged against the approved master sample with B-face marks allowed per the drawing.
Can fascias ship with the enclosure?
Fascias can be bonded or fitted to enclosures in-factory; tell us the assembly and hardware requirements and they are written into the quote.
Which acrylic suits engraved and backlit control panel fascias?
Cast acrylic is recommended for fascias with many cutouts and engraving, extruded for simple flat overlays. Fascia panels typically run 3-8 mm inside the fabricated thickness range 3-100 mm, with graphics and engraving confirmed against the drawing before production.
Will backlight brightness be even across an acrylic fascia?
Backlight brightness and distribution depend on the LED system, sheet grade, thickness and spacing; they are evaluated per application rather than guaranteed. Cutout positions and graphics are confirmed per drawing, and a revision triggers a new first-article inspection so production matches the approved version.
What thickness should an acrylic control panel fascia use?
Fascia panels typically run 3-8 mm and overlay films are quoted per application, inside the fabricated acrylic thickness range 3-100 mm. Thickness is confirmed against the drawing and the components behind the panel, and availability depends on grade and source.
Get a panel quote
Send your panel drawing for free DFM feedback within 12 hours.
Evidence and verification
- First-article reports, dimensional reports and material certificates are supplied on request per order.
- A certificate of conformity or batch COA can be supplied per order on request.
- Material, tolerance, graphics and appearance statements on this page are company-declared by AcrylicFabWorks unless stated otherwise.
- Applicable product grade: Cast and extruded acrylic (PMMA); fabricated fascias
- Fact owner: Engineering and quality review, AcrylicFabWorks
- Last reviewed: 2026-08-28
Technical details
Factory & quality system
Machined acrylic control panels on a CNC machine bed
Machined acrylic control panels on a CNC machine bed

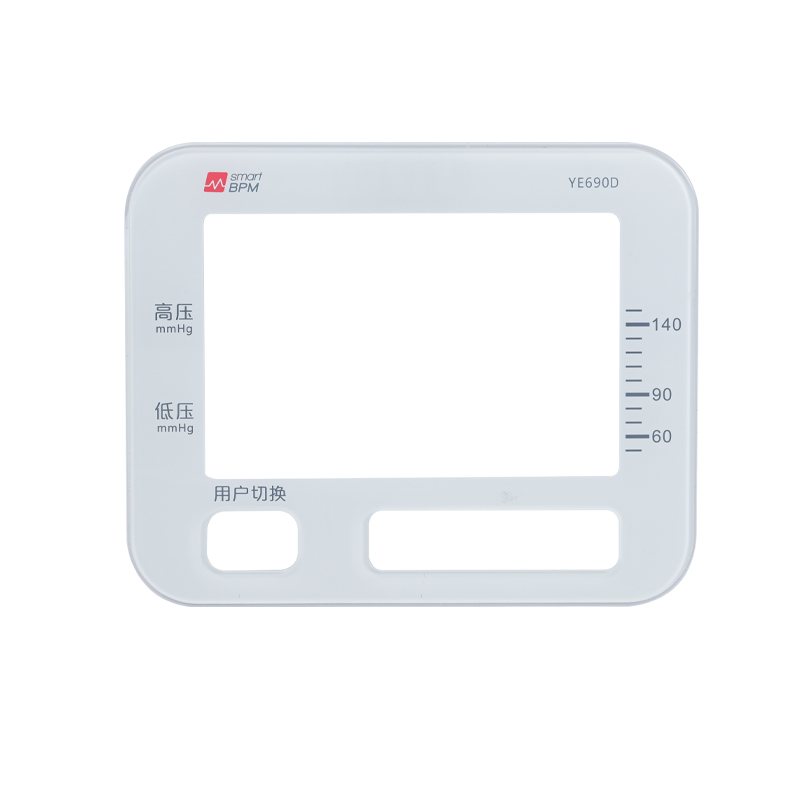

Screen-printed acrylic control panel overlays
Screen-printed acrylic control panel overlays
Clear-grade sourcing statement
Calypto cast acrylic sheet, cast in our own Suzhou facility, is our clear-grade sourcing statement for fascia production; Mitsubishi or Lucite optical-grade PMMA is supplied when the order specifies a branded material.
Technical details
Ordering & lead times
Drawings we accept
Drawings accepted as STEP/DWG/DXF/PDF/sketches, and engineers draft a manufacturing drawing from a sketch so graphics and cutout positions are agreed before production.
Lead times for panel-builder batches
Panel-builder batches run to Engineering review and quote within 12 hours on working days; Sample in 48 hours, production runs in 7 days for typical quantities.
Technical details
Choosing the right route
Control-panel parts we machine
Company-declared
Cast versus extruded for fascias
Cast acrylic recommended for machining-heavy parts, extruded for flat sheet: machined fascias with many cutouts are quoted in cast, while simple flat covers can run in extruded sheet.
Typical fascia thicknesses
Fabricated acrylic thickness range 3–100 mm sets the envelope; fascia panels typically run 3–8 mm and window inserts match the enclosure panel, confirmed against the drawing.
Tolerance bands for openings
Switch and indicator openings follow General tolerances per GB/T 1804-2000 / ISO 2768 depending on size span; Machined features to ±0.1 mm (holes and machined features) apply, and Critical dimensions on the 5-axis CNC to ±0.05 mm are verified at first article per drawing.
Appearance for the fascia A face
The fascia A face follows Appearance described as clear / glass-clear / optically clear judged against the approved master sample, with the tightest scratch and haze criteria.
Annealing and crazing risk
Machined parts annealed with the cast-acrylic industry–standard schedule, and control-panel facias are stress-relieved with this cycle after machining before engraving and polishing; temperature and soak parameters are confirmed per grade, not published. Annealing reduces but does not eliminate crazing risk near screws, inserts or solvent-based graphics.
Bonded joints and seams
Bonded joints described as near-invisible seams apply where fascia panels join their enclosures.
Fascia material and finish choice
| Choose this when | Do not choose this when | Option | Claim IDs |
|---|---|---|---|
| The fascia carries many precision cutouts and inserts | The fascia is a simple flat cover | Cast acrylic, CNC-machined | AF-C15 |
| The cover is flat with few holes | The cover needs engraved or backlit graphics | Extruded acrylic sheet | AF-C15 |
| Labels must survive repeated cleaning | Print is applied by the panel builder | Engraved and back-filled graphics | |
| Backlighting must be even | The panel is not illuminated | Edge-lit or LED-spacing design review per application |
Control-panel fabrication boundaries
| Property | Value | Unit | Product grade | Thickness specimen | Test method / standard | Evidence status | Qualification | Claim IDs |
|---|---|---|---|---|---|---|---|---|
| Fascia thickness | 3–8 mm typical; 3–100 mm capability | mm | Cast and extruded acrylic | Per panel | Per drawing | company-declared | Confirmed per panel size | AF-C05 |
| Cutout tolerance | ±0.1 mm typical; ±0.05 mm drawing-flagged critical | mm | Fabricated fascias | Per order | GB/T 1804-2000 / ISO 2768 plus first-article | company-declared | Per drawing, never a whole-part band | AF-C01, AF-C02, AF-C03 |
| Drawing formats | STEP, IGES, DWG, DXF, PDF or dimensioned sketch | n/a | Fabricated fascias | Per order | Drawing review | company-declared | Manufacturing drawing drafted from sketches | AF-C14 |
| Graphics | Engraving, back-filling, printed overlays | n/a | Fabricated fascias | Per order | Per approved artwork | order-specific | Graphics checked against the master sample | |
| Appearance | A-face tightest criteria; B face allows normal marks | n/a | Fabricated fascias | Per order | Appearance acceptance standard | company-declared | Judged against the master sample | AF-C16 |
| Lead time | Quote 12 h, sample 48 h, production 7 days | hours / days | Typical fascia batches | Per order | Working hours Mon–Sat 09:00–18:00 GMT+8 | company-declared | Volume orders evaluated separately | AF-C09, AF-C13 |
