Short answer: Visibility is a system property. Material clarity matters, but glare, surface scratches, panel angle, lighting, frame placement and viewing distance often control what an operator can actually see. Define the inspection task and sightline first; then specify a protected viewing zone rather than making every surface optically critical.
The fastest route to a reliable specification is to begin with service conditions and acceptance evidence, then work backward to material, geometry and process choices. AcrylicFabWorks has fabricated custom PMMA components since 2014 in an ISO 9001-certified, 15,000 m² facility. Our documented equipment includes eight 3-axis CNC machining centers and one 5-axis center. These firsthand manufacturing observations inform the notes below, but quoted material grade, drawing revision and project-specific test evidence remain controlling.

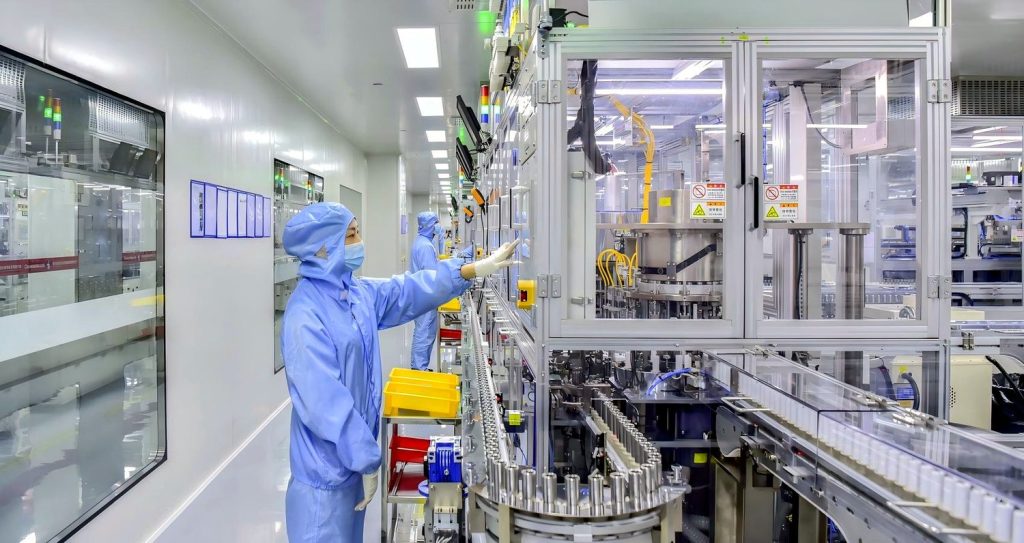

Guard visibility: clarity, glare and line of sight
A useful review of machine guard visibility starts with the part’s function, material grade, thickness, dimensions, environment, load, expected access, cosmetic faces and inspection method. Where a safety function, chemical exposure or regulated installation is involved, assign an engineer or qualified compliance professional to approve the requirement.
This guide stays within one practical decision: optical viewing-zone design for machine guards. Manufacturing capacity, pricing and lead-time questions are covered on the linked capability or product page. Keeping the engineering question separate helps the reader reach a decision without mixing it with purchasing details.
| Situation | Best-fit use or concern | What to verify |
|---|---|---|
| Process monitoring | Overall motion and status | Large clear zone; manage reflections |
| Gauge reading | Small text or scale | Direct sightline and controlled lighting |
| Defect inspection | Fine surface detail | Higher optical standard and cleaning access |
| Maintenance view | Occasional internal check | Local window may be sufficient |
Vision panel design for operators
Use the following sequence during design review. It prevents a cosmetic preference from overriding a functional requirement and gives the supplier a testable acceptance condition. For custom work, AcrylicFabWorks follows GB/T 1804-2000 / ISO 2768-1 for unspecified general tolerances; actual tolerances still depend on the feature size, geometry, material condition and drawing review.
- Record eye positions for operators of different heights and stations.
- Draw sightlines to the exact component, gauge or process feature.
- Place seams, frames, fasteners and labels outside critical view cones.
- Evaluate room lights, task lights and reflections on a full-size mock-up.
- Define cleaning method and replaceable surfaces for long-term visibility.
Do not release production from an illustrative table alone. A sample or first article should reproduce the real resin, thickness, feature geometry, support, process sequence and inspection lighting. If the part will be bonded, cleaned, loaded, heated or installed outdoors, include that downstream exposure in the validation plan. For production orders, our MOQ is 20 pieces per design and specification; samples and one-off prototypes are quoted separately.
What our factory reviews before quoting
For visibility-critical guards, we review: the line of sight from operator eye position to the hazard zone, panel clarity (cast acrylic ≥92% transmission), glare from overhead lighting or windows, and the need for anti-glare or tinted panels. We confirm panel thickness against the span and impact requirement, and check that the guard geometry does not create blind spots at the sides. Where mirrors or angled vision panels are needed, we fabricate and mount them to the drawing.
What changes when lighting is harsh
For this guide on machine guard visibility, the failures that matter most in production and service are:
- Check: Selecting sheet clarity from a hand sample without installed lighting.
- Check: Placing a frame extrusion across the most important sightline.
- Check: Using a glossy parallel panel that mirrors overhead lights.
- Check: Making the panel hard to clean so fine scratches and film accumulate.
How to verify the result
Agree on inspection before production. State the instrument or visual setup, sample conditioning, viewing distance, lighting, measurement locations and acceptance rule. Save the approved sample and process record with the drawing revision. If a result changes, compare resin lot, tool or adhesive lot, machine setup, environment and test method before changing the specification. This evidence trail is more useful than an unsupported performance claim and makes later supplier or customer reviews much faster.
Related engineering and purchasing resources
- Acrylic versus polycarbonate for machine guards
- How to request a fabrication quote
- ISO 9001 quality-control process
- Acrylic fabrication FAQ
Primary references
- ISO 14120:2015 — General requirements for guards. Confirm the current edition, scope and applicability for the project.
- ACRYLITE edge and surface finishing guidance. Confirm the current edition, scope and applicability for the project.
Related engineering guides
Review your drawing with an acrylic fabricator
If the decision in this guide affects a production part, send the drawing, application conditions and acceptance criteria. See our custom acrylic machine guards page, then request a manufacturability review. Typical samples can be produced in 48 hours and production in 7 days after drawing approval when the project scope supports that schedule.
Frequently asked questions
Q: What affects machine guard visibility? A: Sheet optics, thickness, angle, lighting, reflections, distance, frames, scratches and cleaning condition all contribute.
Q: Is thicker acrylic less clear? A: Path length can affect appearance, but material grade, surface quality and viewing geometry also matter; approve the actual configuration.
Q: Can glare be reduced? A: Lighting position, panel angle, matte or controlled surfaces and localized viewing windows can help, subject to the required clarity.
Editorial boundary: This article provides manufacturing and specification guidance. Safety, code, electrical, fire and regulatory decisions remain with the responsible project professionals and relevant authorities.
